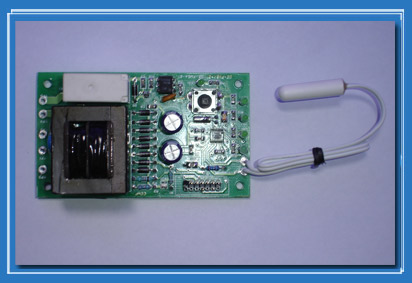

This is a Fridge controller with four temperature bands each with a fixed temperature differential and with compressor ON/OFF Control. The controller also provides four alarm /status LED indication and an automatic defrost. (Automatically defrosts the freezer compartment for 30 minutes in every 12 hours) The controller uses extremely high reliability Thermometrics fridge probe sensors (10K NTC Thermistor). The operating voltage of the controller is from 90 VAC to 140 VAC with low voltage and high voltage cut OFF.

Electrical specifications:

Power supply Voltage	:	110 VAC/50Hz
Voltage operating range	:	90 to 140VAC
Operating Temperature	:	-25°C to +85°C
Relay output contact capacity	:	16 Amps at 127 VAC (Inductive load)

Sensor specification:

Temperature sensor	:	NTC Thermistor (10K)
Beta Value	:	3977+/- 1% at 25/85°C
Response time	:	> 20 seconds
Operating Temperature	:	-40°C to + 85°C
Insulation resistance	:	> 100 Mega ohms at 500VDC
