INDUSTRIAL BOILER PROBES



INDUSTRIAL BOILER SENSOR

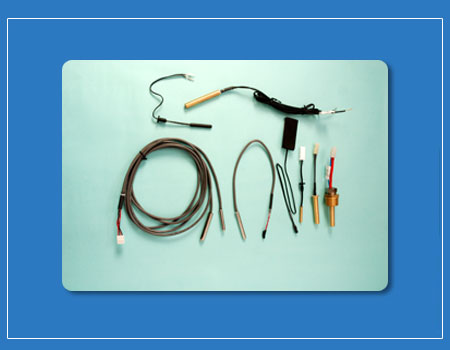

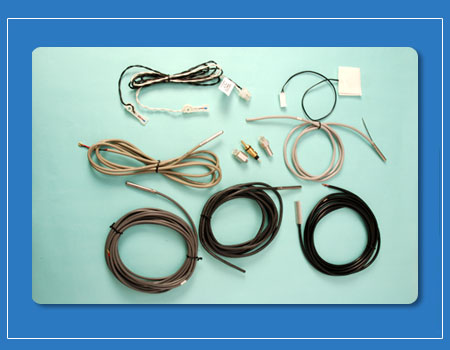

A range of NTC thermistors potted in Stainless steel / Brass/ Aluminium housing. It is used to monitor the surface temperature of a boiler. A glass diode thermistor is sandwiched between thermally conductive self adhesive pads.

Applications:
Suitable to prevent the overheating fluid in a Gas boiler
To sense the temperature in a boiler

Product Features:
Precision fitment
Closed end tubular housing for maximum
   protection in harsh environments

Option:
Other Resistance Values and Resistance
   Temperature Characteristics
Custom design


Res.@ 25°C 2 K ohms, 10 K ohms
Res Tolerances ±1%, ±2%, ±3%
B- Value (25/85°C)C 3540K to 3977K
Response time <10.0 Seconds
Operating Temperature 0°C to 100°C
Insulation Resistance >100 M ohms @Vdc 500
Break down strength 1500 Vac
Lead wire 20/22/24 AWG Twin parallel /Jacketed / PVC
