REFRIgeRATION/ ICE MAKER PROBES/ CHILLER PROBES - TYPE JNI

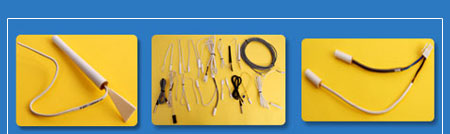

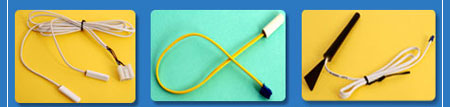

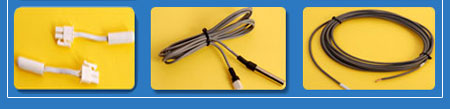

A range of NTC thermistors housed in a plastic or metal housing.

Application:
 Refrigerator / White - goods Applications
Ice maker
Chiller units.

Product Features:
Resistance to moisture ingress
Designed for accurate temperature measurements    and monitoring
Range of wire lengths Proven 250mm to 5000mm

Option:
Custom Design
US and CSA certification

Res.@ 25°C 2 K ohms, 5 K ohms and 10 K ohms
Tolerance ± 1%, ± 2% , ± 5%
B(25/85)C Constant 3000 K to 4000 K
Probe body PVC, ABS, Brass,
SS and Aluminium
Lead Wire 20/22/24/26AWG Twin
parallel / Jacketed PVC
Temperature range -40°C to 100°C
Insulation resistance > 100 M ohms at Vdc 500
